Take your Starlink anywhere with the TRIO All In One 12V Conversion kit for the Gen 3 Starlink dish.

Do you want to get rid of the bulky Starlink router and reduce power consumption? Simply connect the power cable to a 12V or 24V power source, connect to the router Wi-Fi, and you’re online! No wire cutting, no modifying the dish or cable, and no voiding your Starlink warranty.

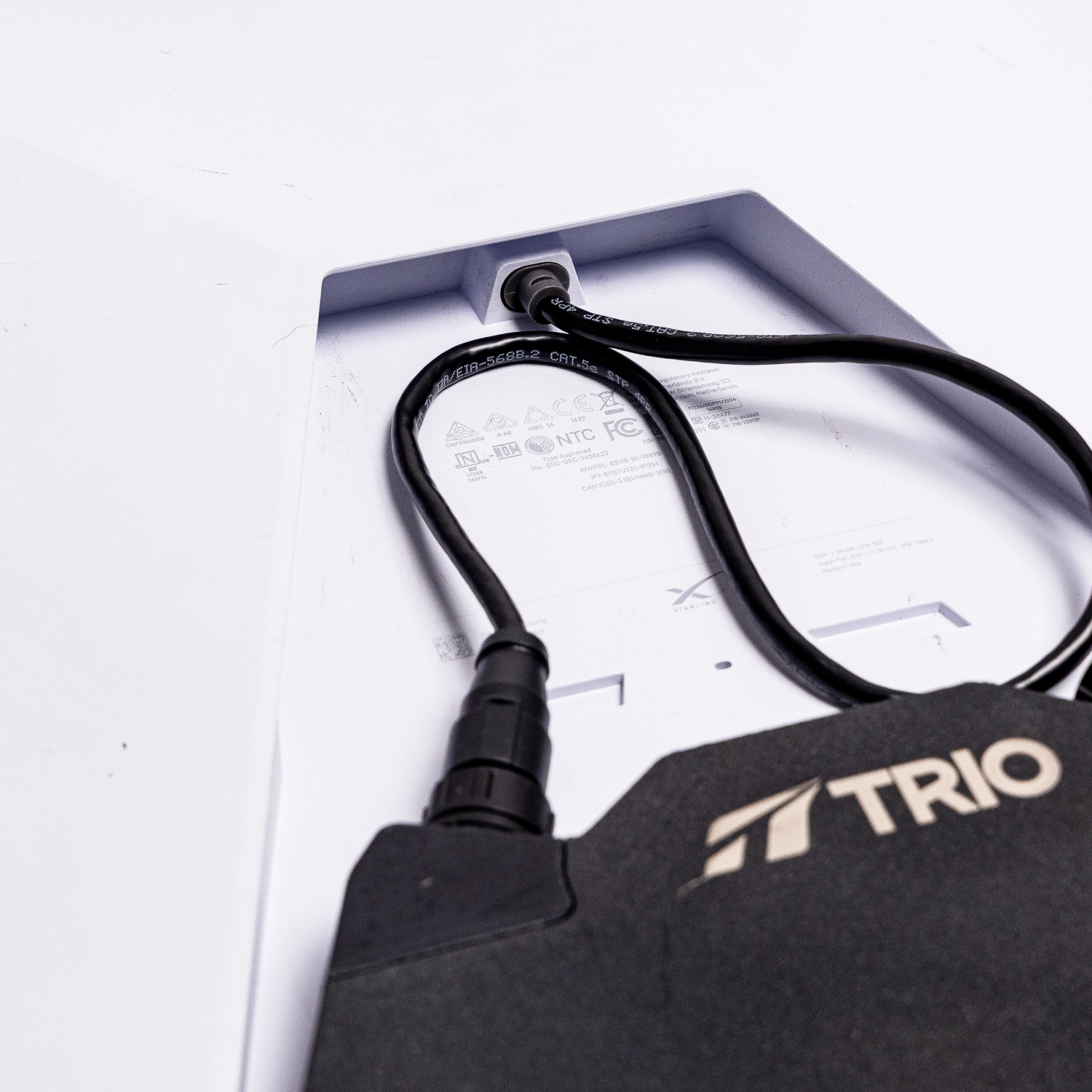

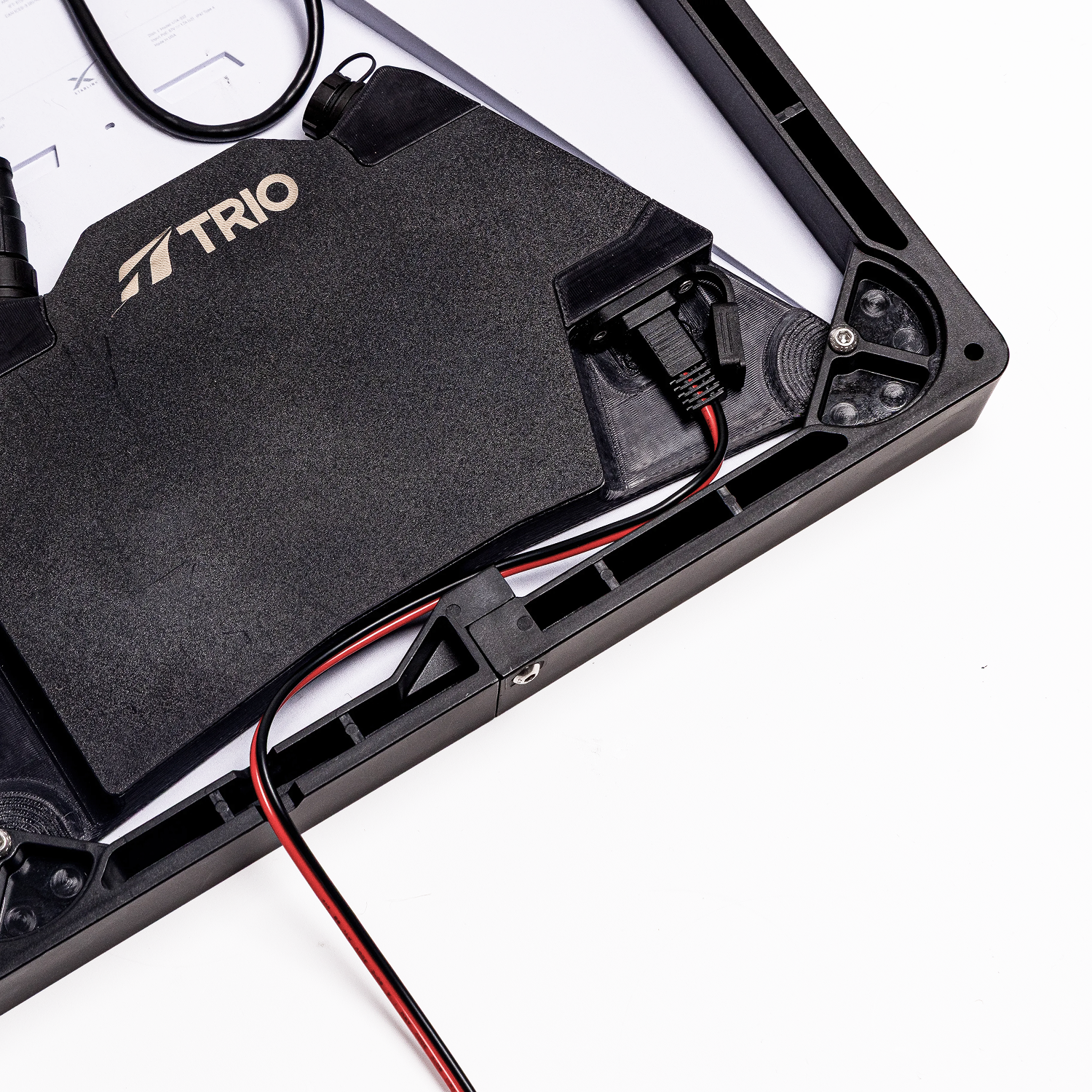

Secure the AIO 12V unit to the TRIO Gen 3 Speedmount (sold separately) and plug in the supplied ethernet cable. And YES, you can still use of the Starlink kickstand or Pole mount attachment with this kit.

You will no longer need to use the Starlink Router or Power Supply with this setup. We have installed a Wi-Fi 6 Router inside our TRIO Conversion Box and the Starlink App is still fully functional!

  • Includes fast and power efficient aftermarket Wi-Fi 6 router (2.4 GHz and 5 GHz)
    • Second IP67 sealed LAN ethernet port for hardwire computer or additional router connection
  • Works with both 12v and 24v electrical systems
  • Choose from multiple, easily swappable wire length options, allowing you to move your dish from the roof of your vehicle to another area with clear view of the sky if needed
  • No cutting required
  • Fully sealed connections and IP66 rated
  • Recommended for use above 32ºF

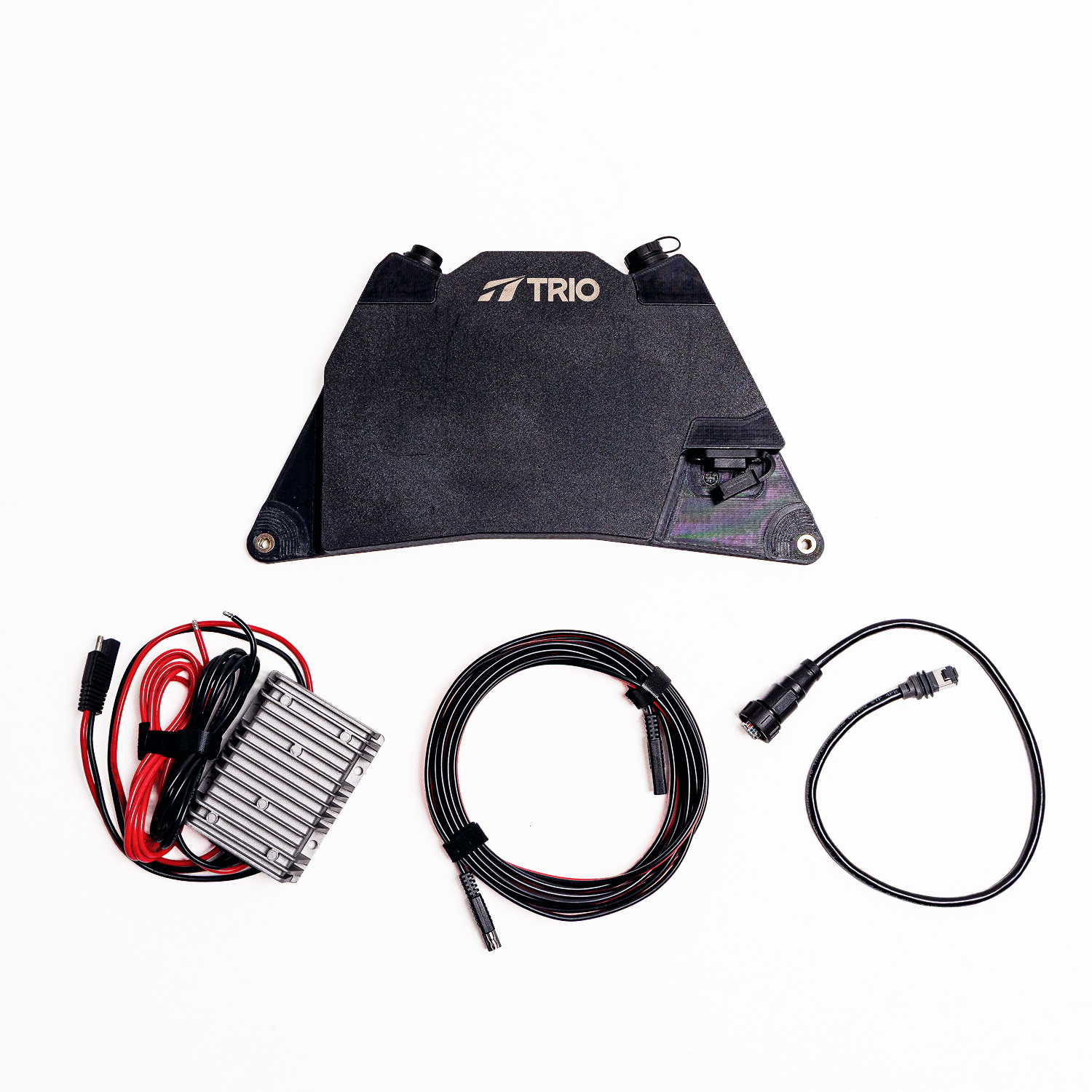

  • Includes 12/24V-56V Converter (IP67 rated) which is outside of the unit to eliminate risk of over-heating and allow smaller cable size and longer lengths
    • High quality SAE cable connections allow quick and easy swapping between standard 15’ and longer 40’ cable lengths when moving your dish from the roof away from your vehicle or between vehicles.

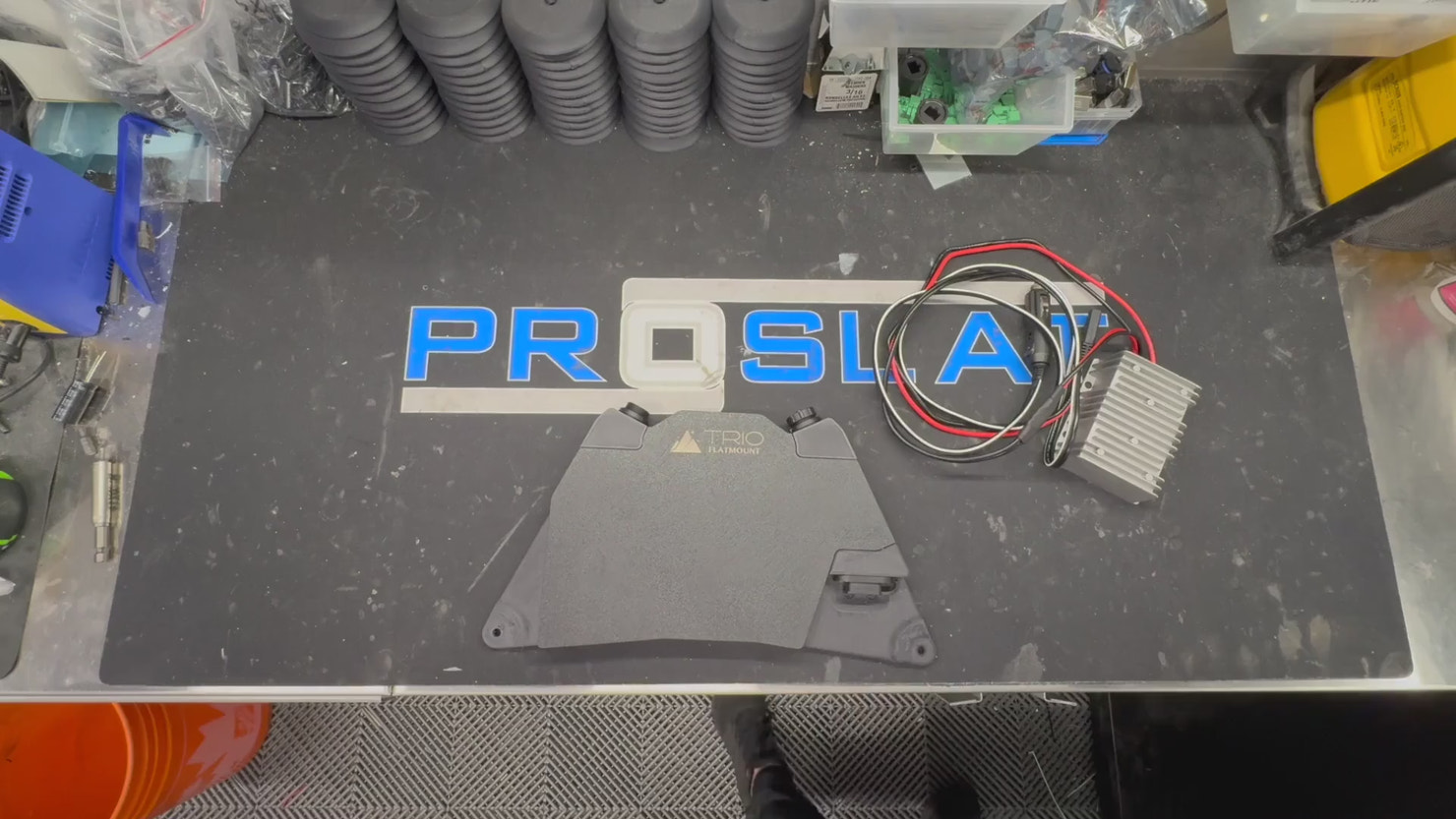

This is the ultimate solution for mounting and powering your Starlink system on any vehicle with a 12V or 24V DC electrical system. Designed specifically for RVs, boats, work trucks and trailers, heavy duty equipment, overland rigs, and camper vans. This kit lets you bring your Starlink wherever your journey takes you.** See Setup/Instruction Video Below **

Manufactured from waterproof and UV thermoplastic that will not warp. Utilizes EPDM o-ring gasket for high quality seal.

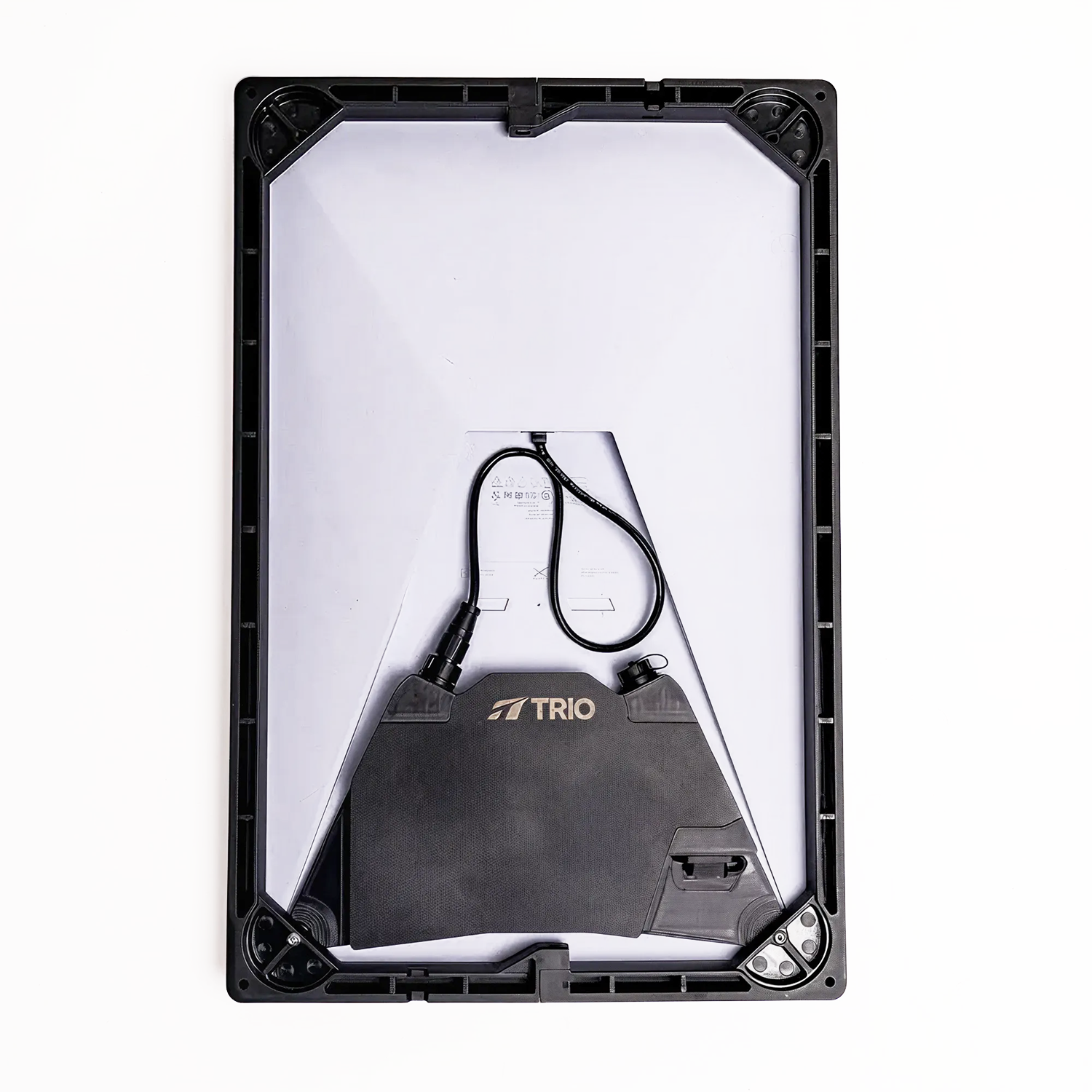

This AIO 12V unit is designed to be secured to our Gen 3 Speedmount. Speedmount is sold separately.

Select the preferred cable length and appropriate 12V/24V connector for your application from the drop down: standard 15’ cable or longer 40’, and cigarette lighter plug, bare wire leads, or ring terminals.

IMPORTANT NOTES:
* Using the snow melt function draws an additional 120W and cannot be used via cigarette lighter plug as most vehicles have a 10A limit. Ring terminal or hardwire connection is required for snow melt function.
* Cigarette lighter plug may not work on portable battery packs like Renogy/ecoflow/etc due to low amperage output

Assembled Dimensions:

Length: 196.8 mm (7.75”)
Width: 348.2 mm (13.71)
Height: 28.4 mm (1.12”)
Weight (~3 lbs)

**If connecting to a 12V fuse block, please use a 20A fuse for use with snow melt function or 15A without snow melt (Please size the 12V cable appropriately based on cable length and fuse size. Seek professional electrical assistance if required). If connecting to a 24V fuse block, please use a 10A fuse.

IMPORTANT NOTES:
* Using the snow melt function draws an additional 120W and cannot be used via cigarette lighter plug as most vehicles have a 10A limit. Ring terminal or hardwire connection is required for snow melt function.
* Cigarette lighter plug may not work on portable battery packs like Renogy/ecoflow/etc due to low amperage output

⚠ Using Starlink™ in motion may violate your Terms of Service depending on your service location. Consult your Terms of Service to determine if this applies to you.

⚠ Given the varying conditions and applications that this can be installed in, it is ultimately up to the end user to make sure the power supply is safely and appropriately connected to 12V or 24V power. By purchasing and using this product, you agree to waive any claims that you may have against TRIO Flatmount, www.trioflatmount.com, and included entities, from any and all liability for any loss, damage, expense or injury, including death, that may suffer as a result of the use of the product, due to any cause whatsoever.

⚠ Given the varying conditions of surfaces this can be mounted to, it is ultimately up to the end user to make sure the antenna mount is sufficiently secured. By purchasing and using this product, you agree to waive any claims that you may have against TRIO Flatmount, www.trioflatmount.com, and included entities, from any and all liability for any loss, damage, expense or injury, including death, that may suffer as a result of the use of the product, due to any cause whatsoever.
